Groove Grinder
Strong Performance and Longevity for Highest Efficiency
Developed strictly in accordance with industry requirements, Herkules groove grinders combine a number of advantages. The machines' longevity and their top performance guarantee their success in your production facility.
Quality down to the last detail – all machine components consist of very stable cast-iron elements with excellent damping properties and a high rigidity for nearly vibration-free machining. Minimized set-up and machining times are also characteristic for Herkules groove grinders. The hydraulic clamping device is integrated in the main axis and allows for an absolutely accurate changeover of workpieces within seconds. This minimizes typical non-productive times for changing tools. The generously dimensioned grinding spindle, which is mounted radially and axially entirely free of play, reduces grinding times significantly.

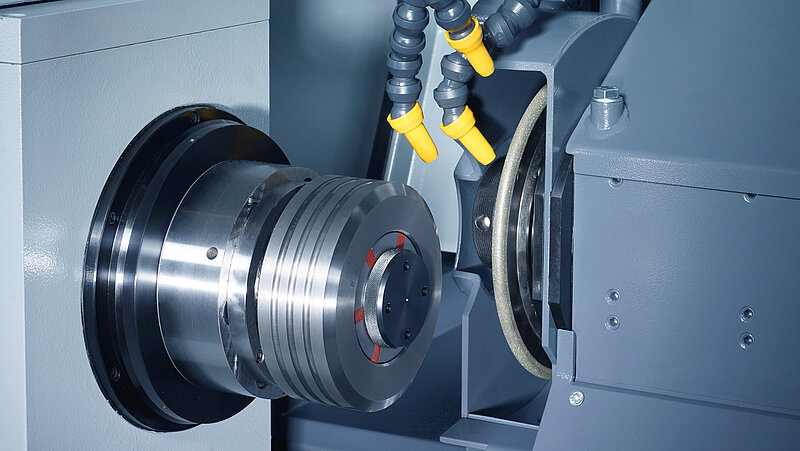

Groove grinding at the highest level – grinding wheel with protective cover

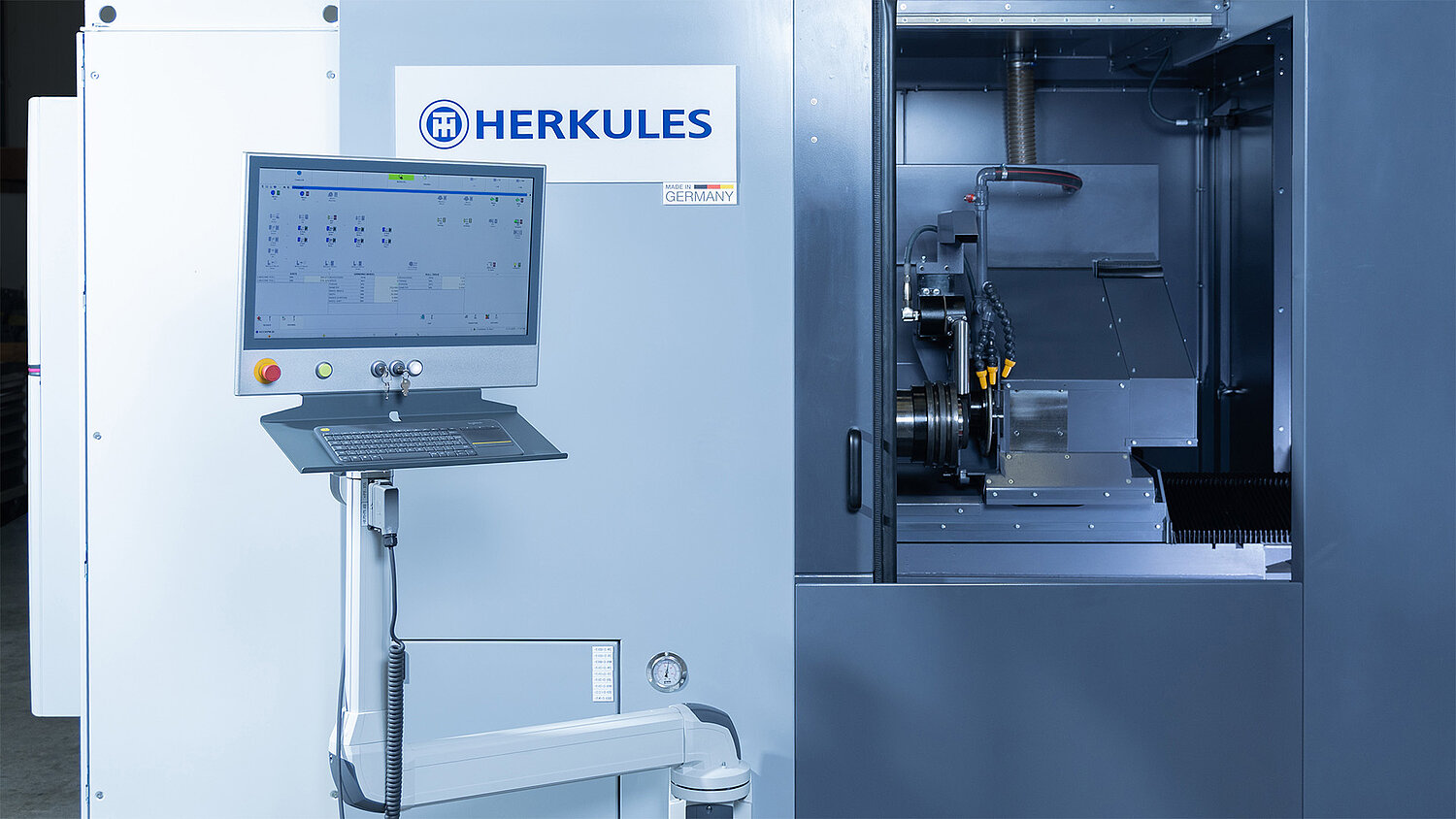

Groove grinder HS 3 with closed work space cover
Technische Daten
Höchste Leistung und Präzision
Auf Wunsch auch komplett auf Ihre Anforderungen realisiert
Workpiece diameter
max. 500 mm
Workpiece length
max. 2,500 mm
Workpiece weight
max. 2,000 kg
Wheel diameter
max. 300 mm
Circumferential wheel
-speed max. 50 m/s
Industries
For Complex and Individual Demands
Herkules has been an established partner to a wide range of industries for many decades. Based on this extensive know-how, Herkules has developed individual solutions for every branch of industry. With a Herkules machine, every industry lays the foundation for a high-quality end product.
Technology
efficient Groove Grinding
The design of our groove grinders is the result of many years' experience gathered by Herkules in manufacturing first-rate roll grinders and lathes. Guideways and bearings have been developed according to the latest technological developments and optimized with a view to longevity and ease of maintenance.
The solid construction of the machine allows for high grinding pressures, i.e. large feed values, and therefore ensures the shortest machining times. The elimination of vibration, another result of the machines' robust construction, is decisive for a long wheel life and therefore economical grinding.
Optional Equipment
Highlights
- Logo milling deviceto highlight your specifications: The device is integrated in the machine and necessary movements are realized by the machine axes. Numbers or letters are programmed on the CNC control by entering relevant data on a graphic screen.
- Notch milling devicefür die For rebar manufacturers, Herkules offers a notch milling device which is directly mounted on the grinding saddle and can machine large constructional steel sections with diameters of up to 50 mm.

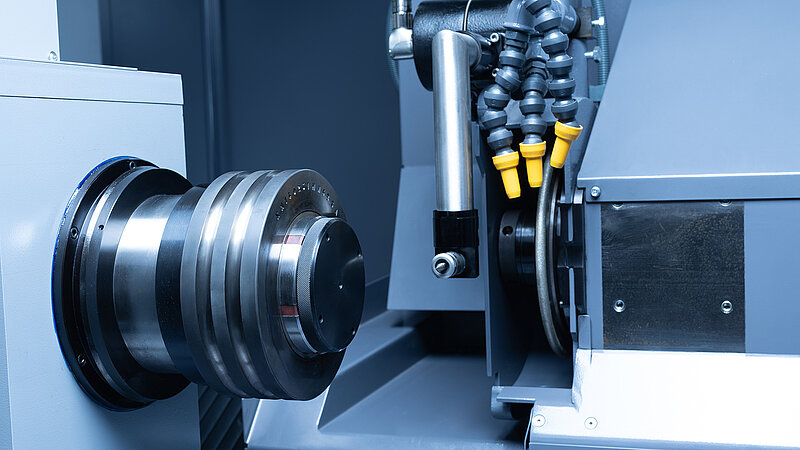

- Automatic measuring deviceto measures the depth and the exact position of the grooves. The automatic measuring device is fixed at the grinding saddle and automatically swivelled into the working position. The device is integrated in the machine and all necessary movements are realized by the machine axes. The measuring device works automatically and can be activated at any time.
